TSX Broadway
New York, NY | 500,000 SF | 2023
-
In 2013, PBDW was engaged to design TSX Broadway: a redevelopment project facing Father Duffy Square, at the heart of Times Square. In collaboration with the same development firm of PBDW’s EDITION Times Square project across 47th Street, the “sibling” buildings were envisioned by the owner as a new gateway to the “bow tie” of Times Square where Broadway and Seventh Avenue converge. PBDW prepared multiple design schemes for the existing property and alternative options that included the adjacent landmarked Miller building.

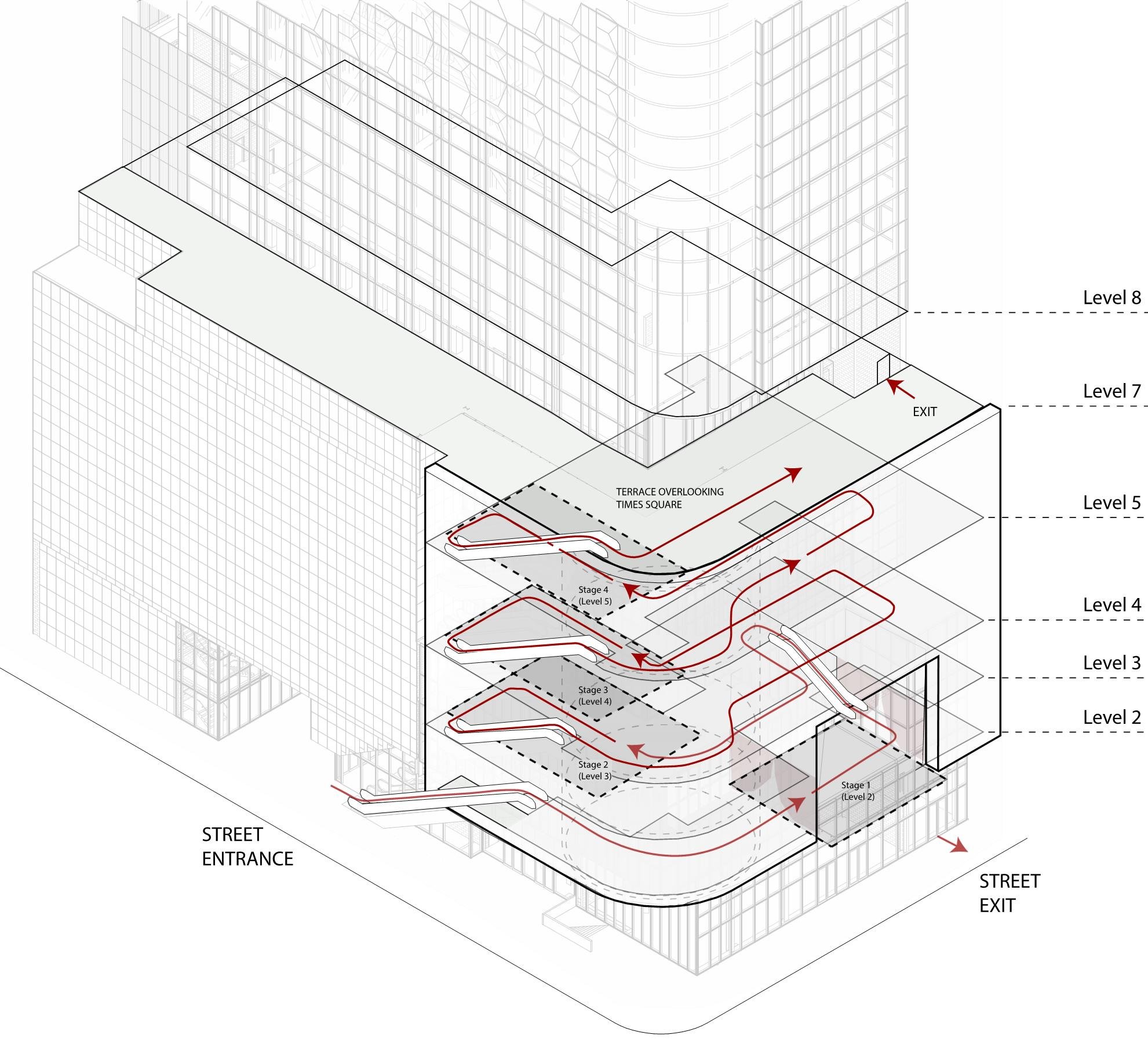

PBDW developed the Master Plan for the entire TSX project featuring retail, entertainment and hospitality programs pivoting around the visionary concept of elevating the iconic Palace Theatre 30 feet above grade to allow for retail use below.
The complicated zoning analysis included the retention of 25% of the existing Double Tree Hotel, built atop the 1912 theater in 1988. The project features one of the largest LED screens in the world, for which Zoning determinations and a revokable consent from the city were required. The design integrated innovative ideas, such as an LED screen which opens to reveal a stage facing the Square, provisions for a new theater lobby on 47th Street with an increased public engagement at street level, and improved front of house and back of house facilities for the theater.
PBDW coordinated the scope of design disciplines in the preliminary documentation stages, including the building envelope and early energy analysis, through late 2016. From this point on, the firm’s role was primarily that of design and preservation architects for the landmarked Palace Theatre. The team worked closely with the theatre lift consultant and engineers on the stabilization, vibration and environmental monitoring required to prepare the theater for the lift. After almost a decade of restoration and upgrades within its landmarked interiors, the theater reopened in May 2024.
-
Master Plan Architect: PBDW Architects (Scott Duenow, James Seger, Leonard Leung, Sean King, Brigitte Cook, Brooke Collaer, Kristin Bauer, Michael Neglia, Debora Barros, Jennifer Whisenhunt, Leza Rozmarek, Nick Shrier, Kylee Pearson, Kamay Jin, Marshall Sellers, Vikrant Dalvi, Cornell Chu, Jack Rutka, Edward May, Laura Boynton, Lawrence Chen)
Architect of Record (Tower): Mancini Duffy
Façade Consultant: Perkins Eastman
MEP Engineer: Cosentini Associates, Inc.
Theatrical Consultant: Theatre Projects
Structural Engineer: Severud Associates Consulting Engineers, P.C, and Robert Silman Associates Structural Engineers, DPC (Peer review)
Theater Lift Engineer: Urban Foundation Engineering LLC
Kitchen: Next Step Design
SOE: Langan
Code Consulting: Design 2147 and Rizzo Group
Conservator: Jablonski Building Conservation, Inc.
LED Screen: Sensory Interactive
Lighting Designer: zeroLUX lighting design and Reveal Design Group
Acoustical Consultant: Longman Lindsey (Tower and Theater FOH/BOH spaces)
Elevator Consultant: Vidaris, Inc. and IROS Elevator Design Services
Construction Manager: Structure Tone Building Group (Theater), Pavarini McGovern (Entertainment, Hospitality, and Retail)
Owner’s Representative: PRA Consulting
Photographer: Francis Dzikowski
-
